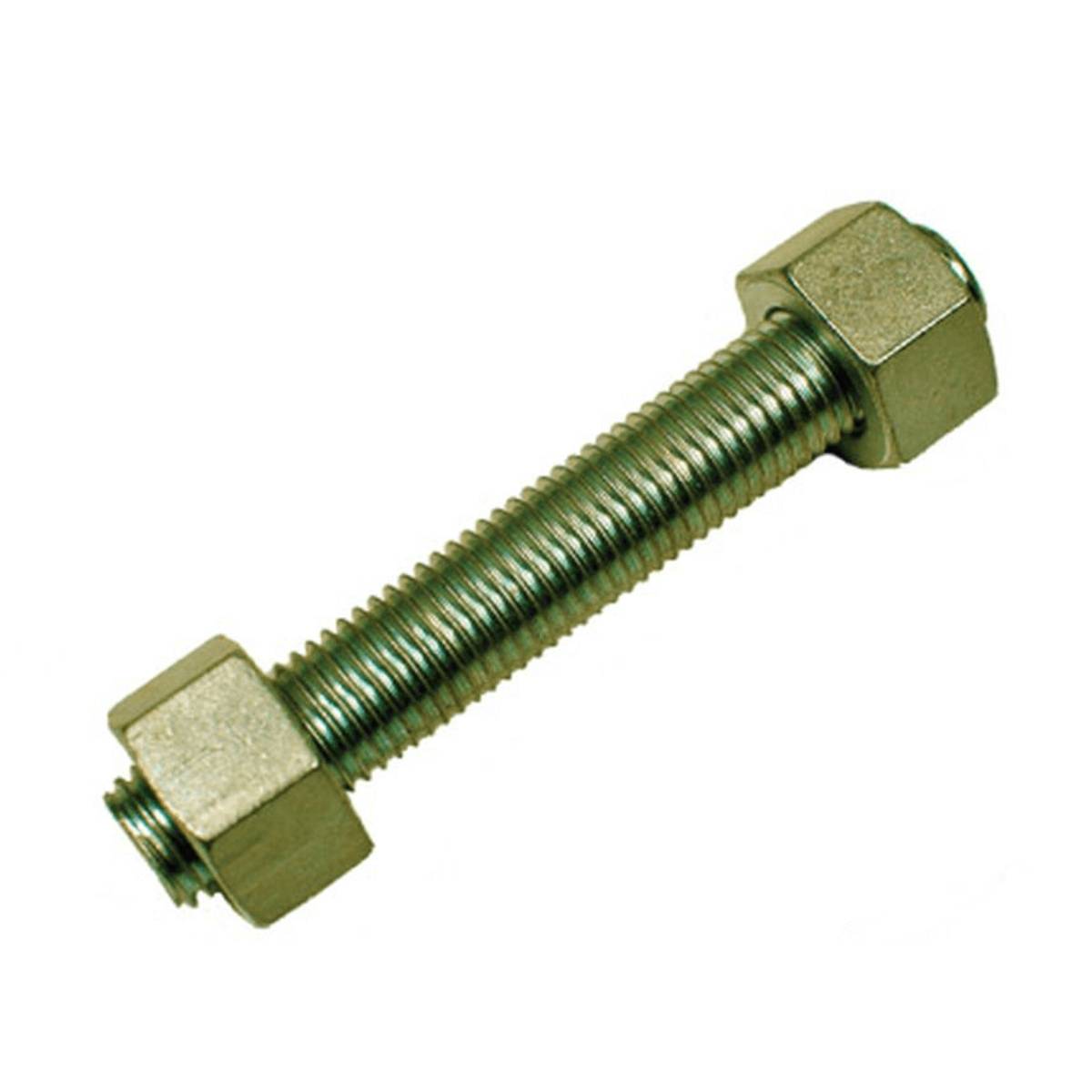

B7 Studs | A193 | Zinc Plated

Product Features:

• The material for B7 Studs and Nuts conform to the requirements of ASTM A193 Grade B7 AISI 4140 4142 4105
• High strength carbon steel maximum yield strength of 105000 PSI and minimum tensile strength of 125000 PSI
• For 1” and smaller: threads are Unified inch coarse or fine series (UNC or UNF series) Class 2A in accordance with ANSI/ASME B1.1
• For size larger than 1”: threads are Unified coarse or 8 thread series (UNC or 8 UN Series)
• Screw threads are based on System 21 of ANSI/ASME B1.3
• Coating available in Plated and Black

Materials:

• STUD: Alloy Steel
• NUTS: Carbon Steel ASTM A-193
• Grade B7 for Studs ASTM A-194
• Grade 2H for Nuts
• SIZE: 0.5" TO 2.75" Diameter &
• LENGTH: 2.5" TO 25"
