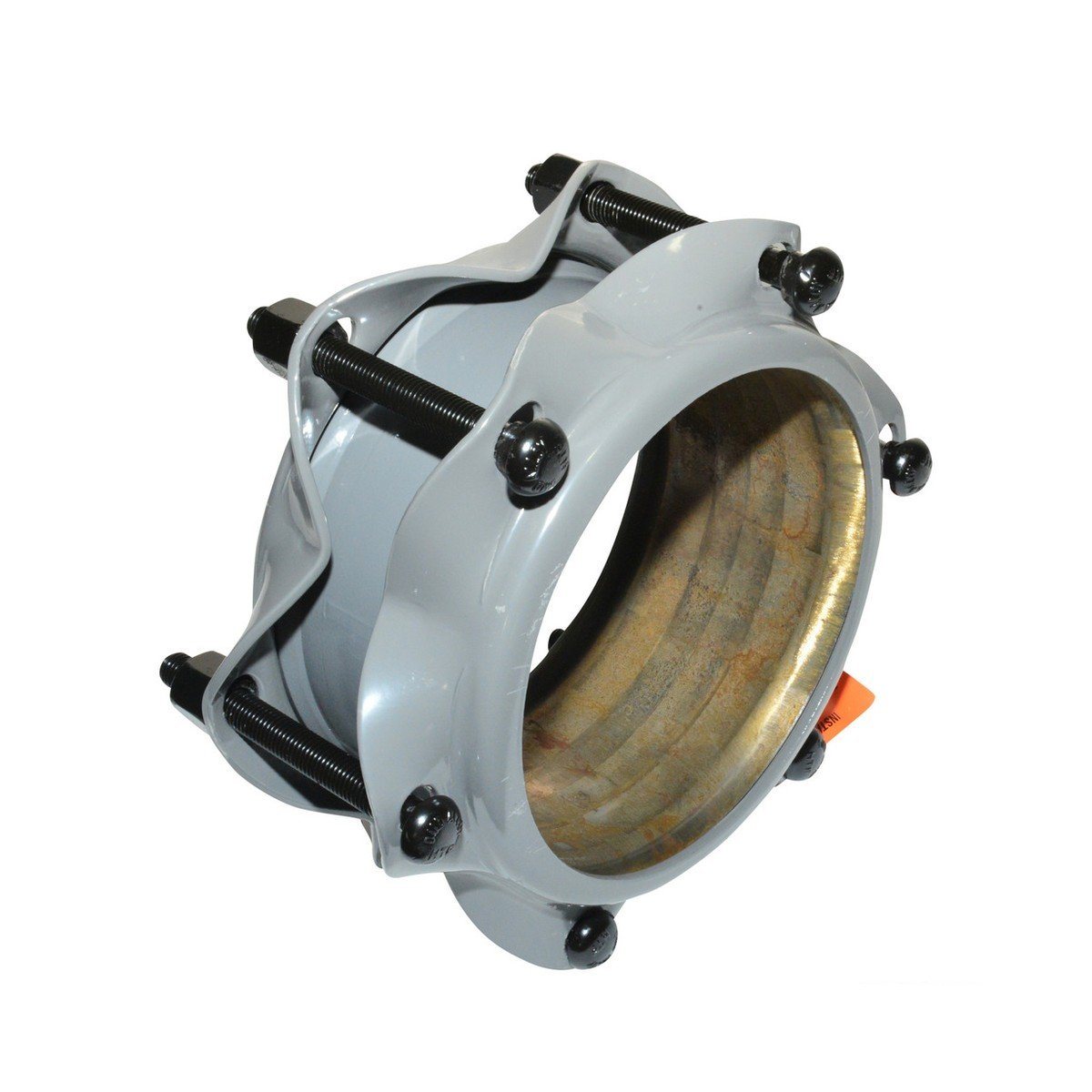

Style 4 | Collar Leak Clamp

Product Features:

Dresser Style 4 Collar Clamps quickly and inexpensively stop leaks through threaded screw collars (threaded couplings), solvent weld couplings (collars) and stab-type PVC joints. Repairs are permanent and normally made without interrupting service or dismantling the line. Dresser Style 4 clamps consists of two malleable split follower rings with interlocking ends on each section, two resilient split Dresser gaskets, and bolts as required for pipe sizes up to 4.

Note: Style 4 is limited to ( 2" - 4" ) Nom. Size. |

Materials:

• Followers: AISI C1012 or ASME SA36 Bolts
• Nuts: Alloy to AWWA C 111/ANSI A21.11
• Coating: Fusion-Bonded Epoxy
• Gasket: (27) Buna S - Temperature rating up to 212 F - Most Common

  ( )
