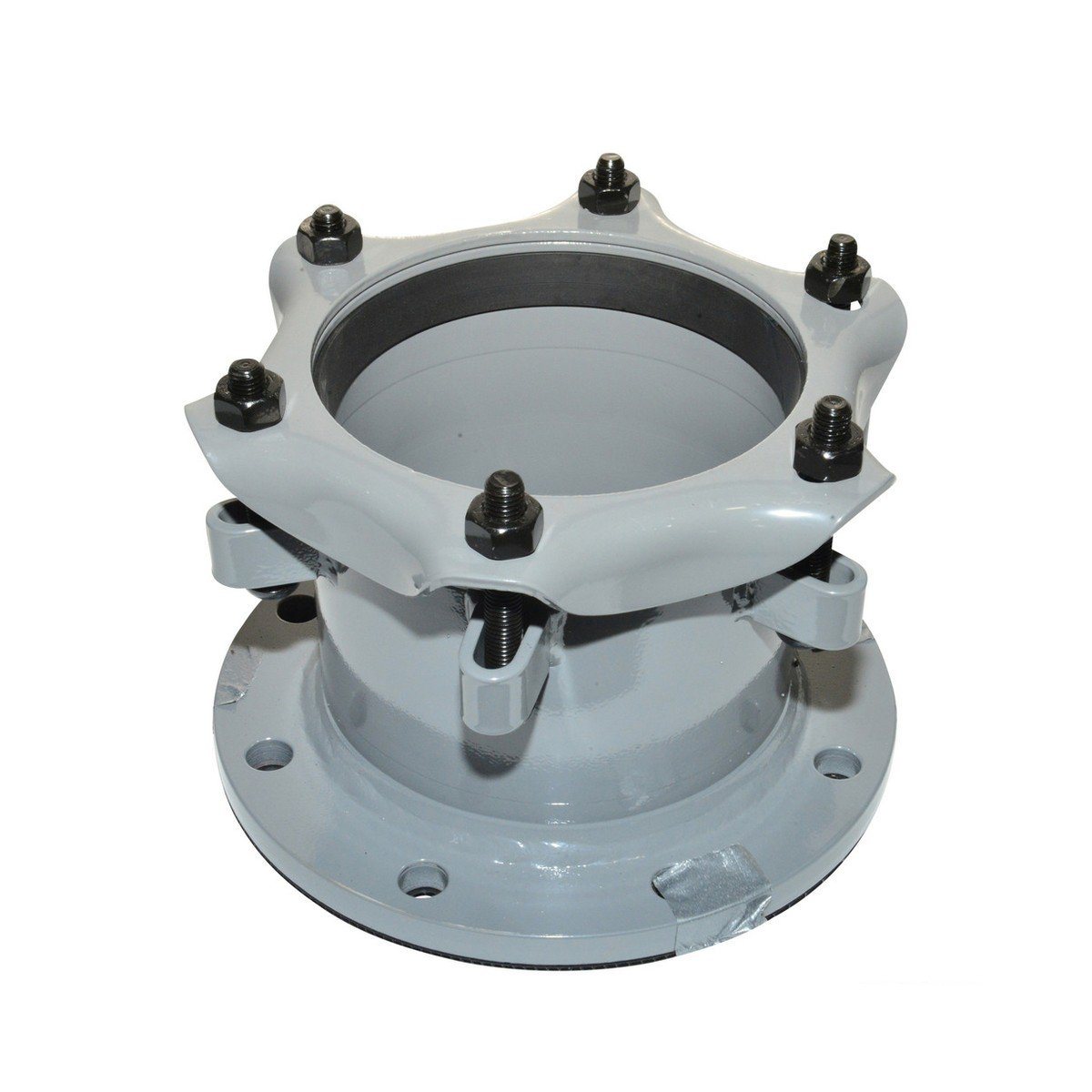

Style 128 | Flange Adapter

Product Features:

Fabricated to order from high-strength steel, Dresser Style 128 (Dresser Flange Adapter) afford the engineer a complete size range up to 24 diameter in steel, cast-iron and A-C pipe sizes. Flanges can be supplied to AWWA specification C-207 as well as other U.S. and international standards. The compression end of the adapter has a Dresser coupling type design utilizing a wedge gasket for an efficient, leak-proof seal. Insulating designs can also be furnished. The Dresser Style 128 (Dresser Flange Adapter) is also available with lock pins to provide anchorage to the pipe. Larger sizes are available upon request.

Materials:

• Follower: AISI C1012 or ASME SA36 Body
• Flange: ASTM A513 ASTM A635 or ASMESA675 GR60 Bolts
• Nuts: Alloy to AWWA C 111/ANSI A21.11
• Gasket: Grade 27 BUNA S
• Coating : Fusion-Bonded Epoxy
