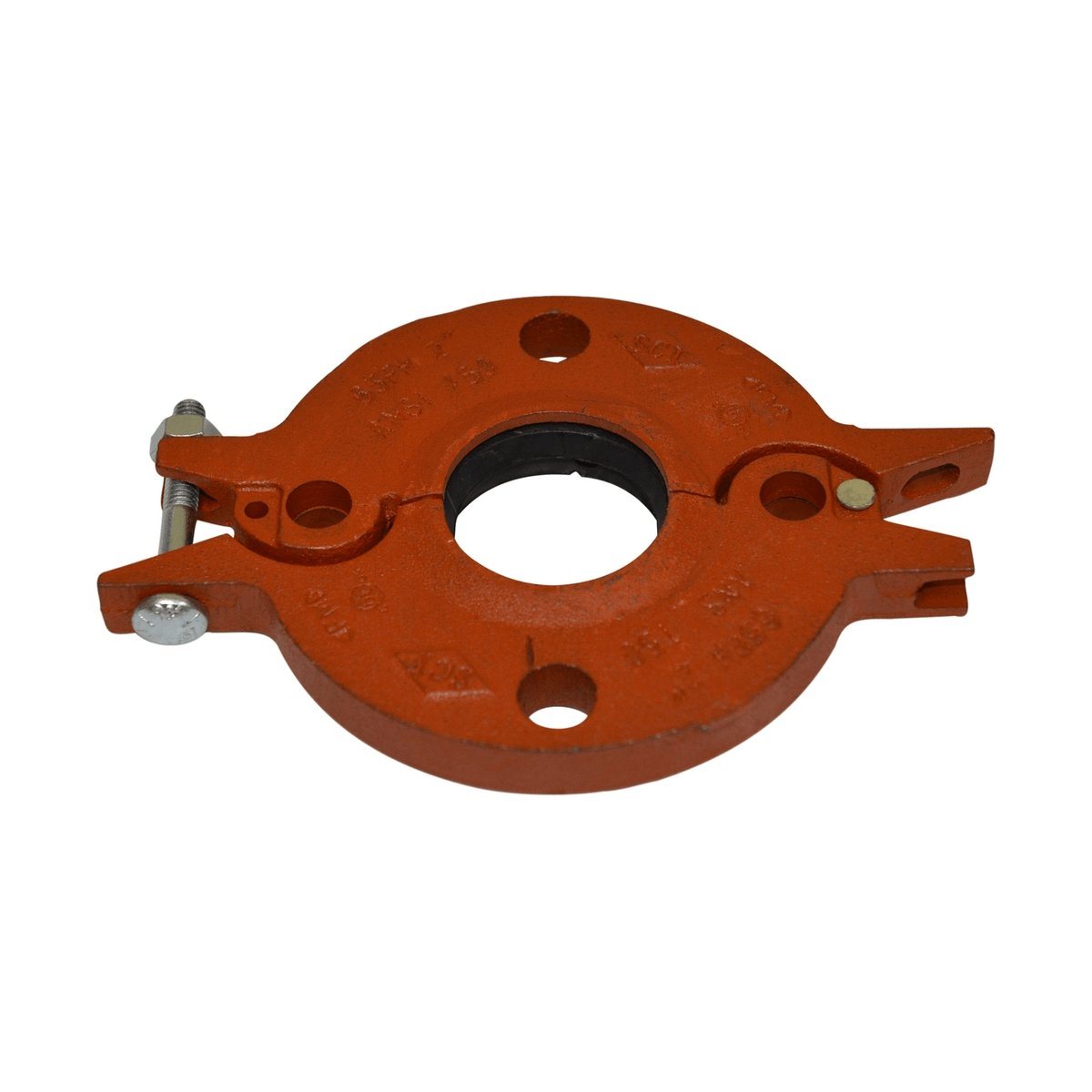

Grooved Hinged Flange Adapter
Product Features:
€¢ Maximum working pressure 300 psi (20.7 bar) depending on flange
size and schedule of pipe
€¢ 3/8" x 2-3/4" latch bolt included
€¢ SCI does not provide flange bolts
€¢ All bolts and gaskets identified by SCI logo
€¢ 100% magnetic particle inspection of each bolt
€¢ Each bolt has a minimum tensile strength of 110,000 psi
€¢ Gasket Grade E - EPDM (green stripe) -30?F (-34?C) to +230?F (+110?C)
€¢ Gasket Grade T - Nitrile (orange stripe) -20?F (-29?C) to +180?F (+82?C)
€¢ Ductile iron housings conform to ASTM A-536 Grade 65-45-12
€¢ Groove dimensions to AWWA C-606
Matches Class 125/150 flange dimension
