Grooved Lightweight Flexible Coupling | Tripple Seal Gasket
Product Features:

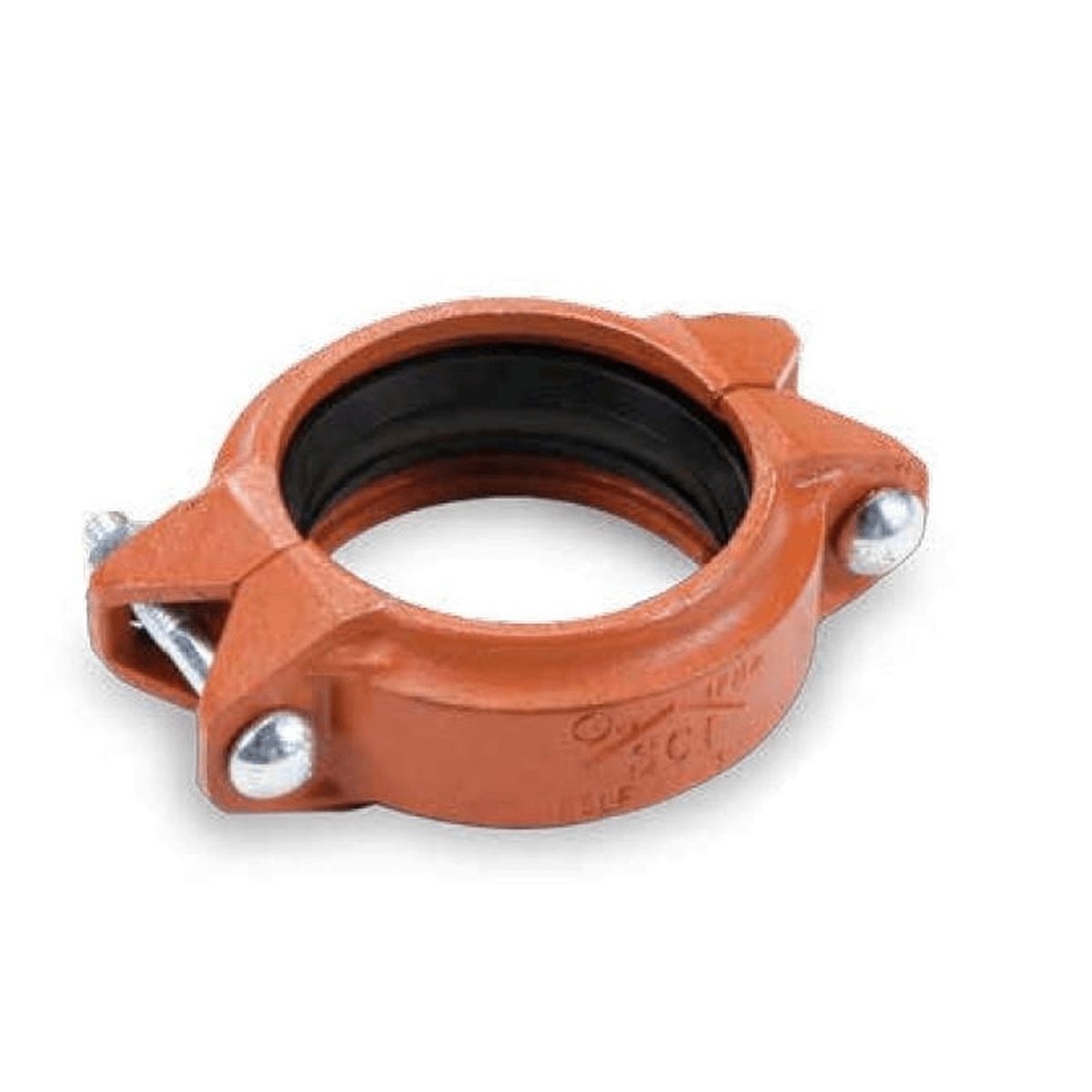

Fig. 65LFTRI & 66LFTRI
Lightweight Flexible Coupling with Triple Seal Gasket
€¢ Maximum working pressure 500 psi (34.5 bar) depending on coupling
size and schedule of pipe
€¢ All housings, gaskets and bolts identified by SCI logo
€¢ 100% magnetic particle inspection of each bolt
€¢ Each bolt has a minimum tensile strength of 110,000 psi
€¢ Gasket Grade E - EPDM (green stripe) -30?F (-34?C) to +230?F (+110?C)
€¢ Ductile iron housings conform to ASTM A-536 Grade 65-45-12
€¢ Groove dimensions to AWWA C-606
€¢ Finishes: Orange enamel paint
Hot dipped galvanized conforming to ASTM A-153
€¢ Smith-Cooper Warranty only applies to assemblies made with housings, gaskets and bolts carrying the logo
